Land Rover Defender Cut Away

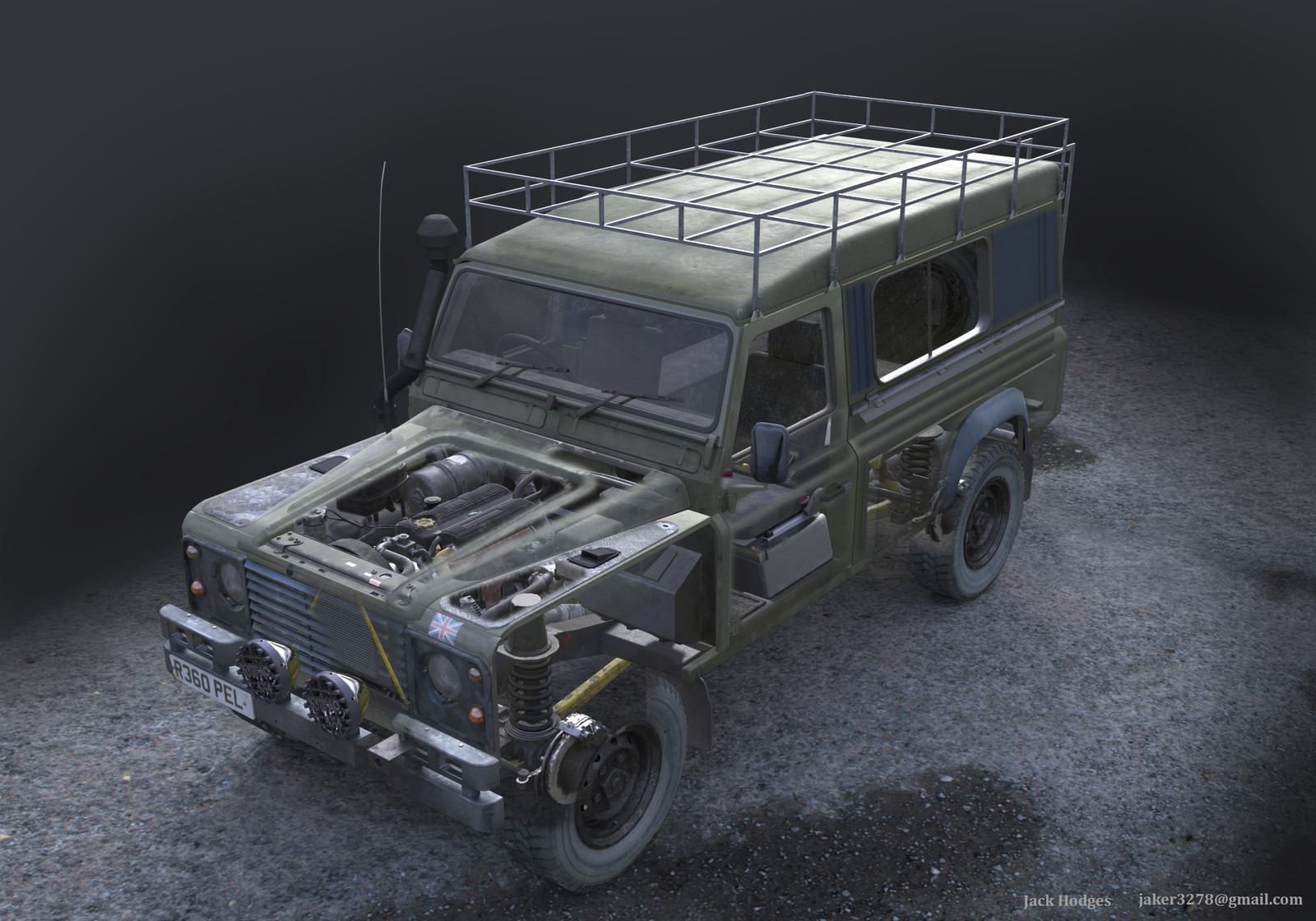

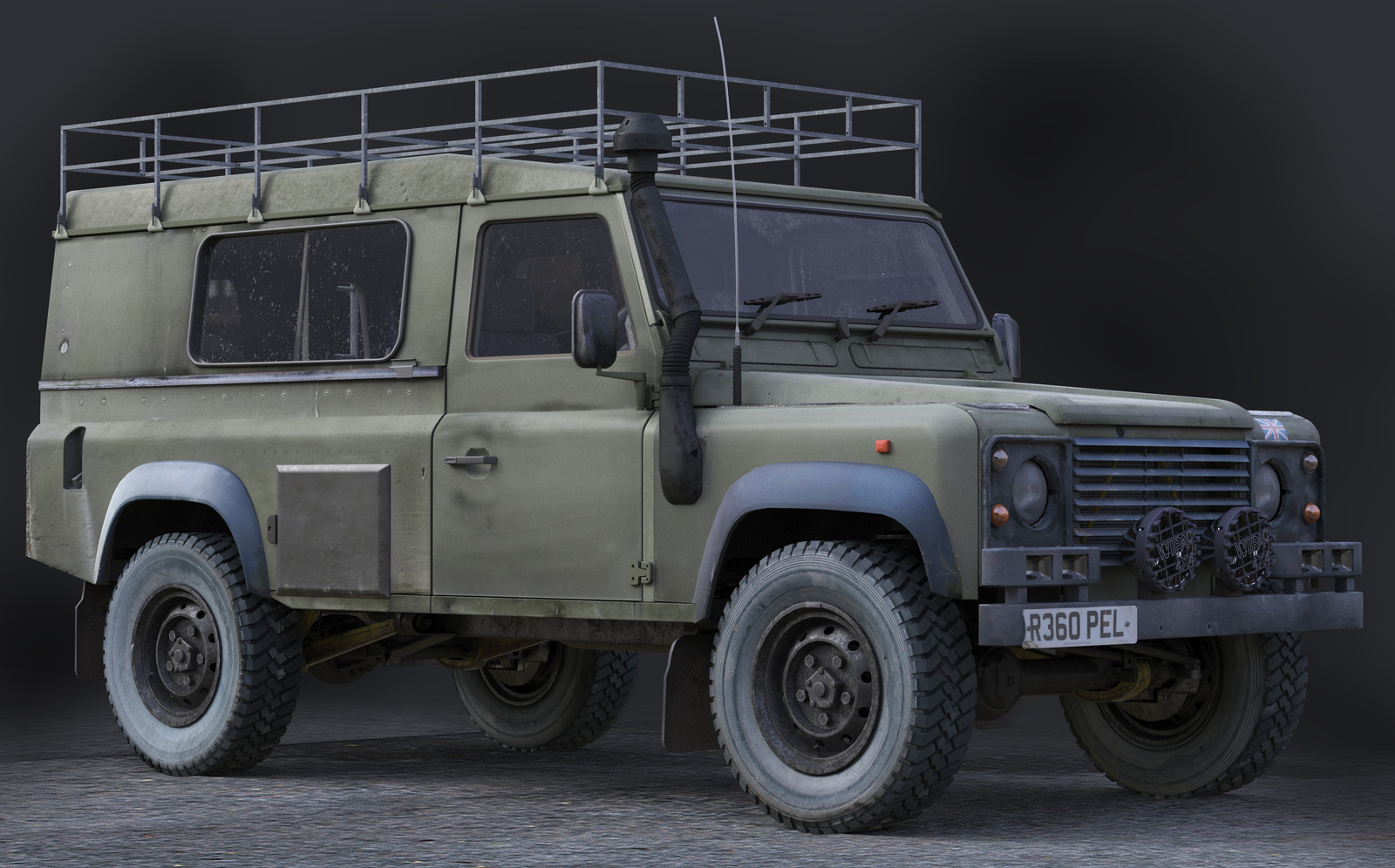

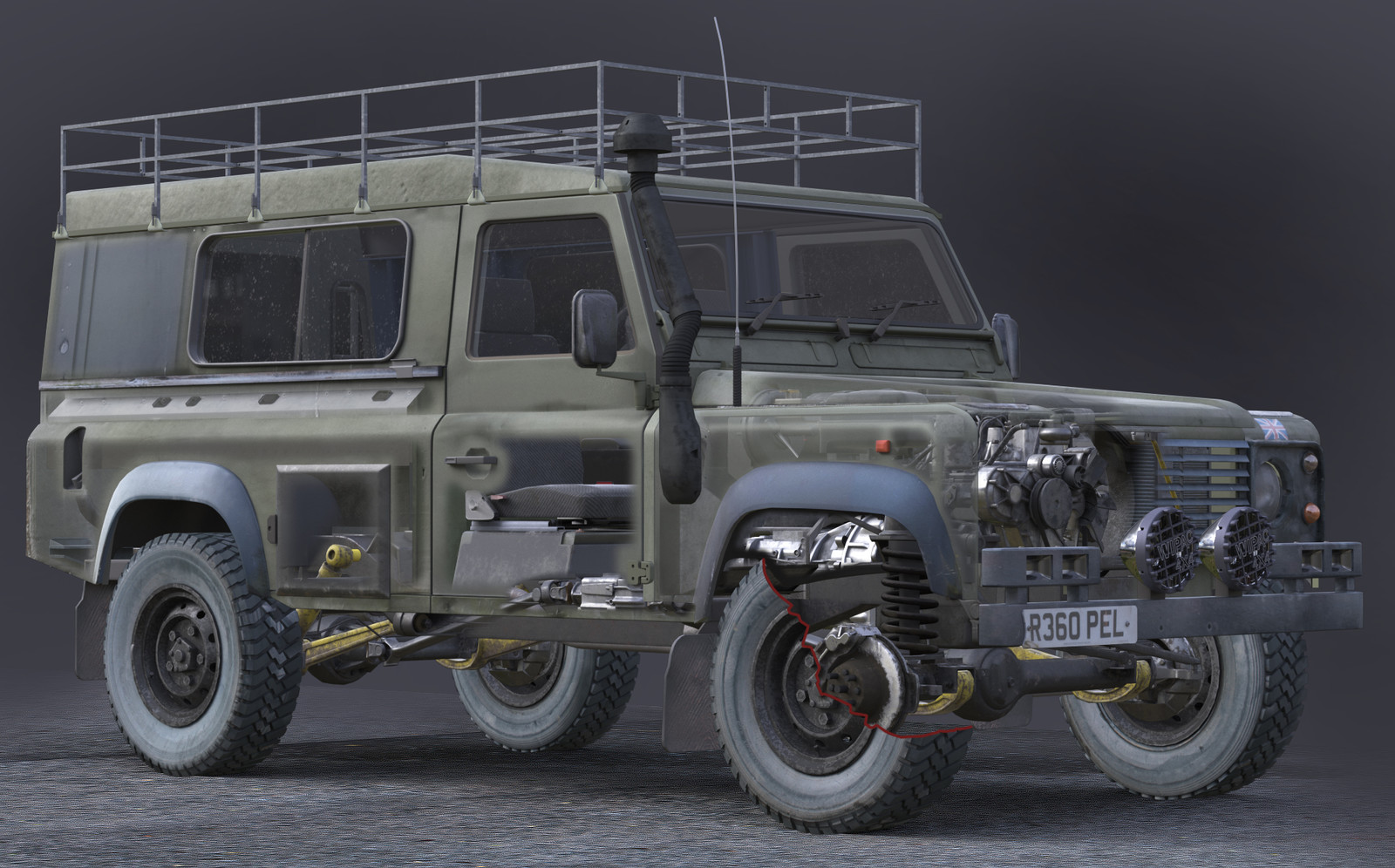

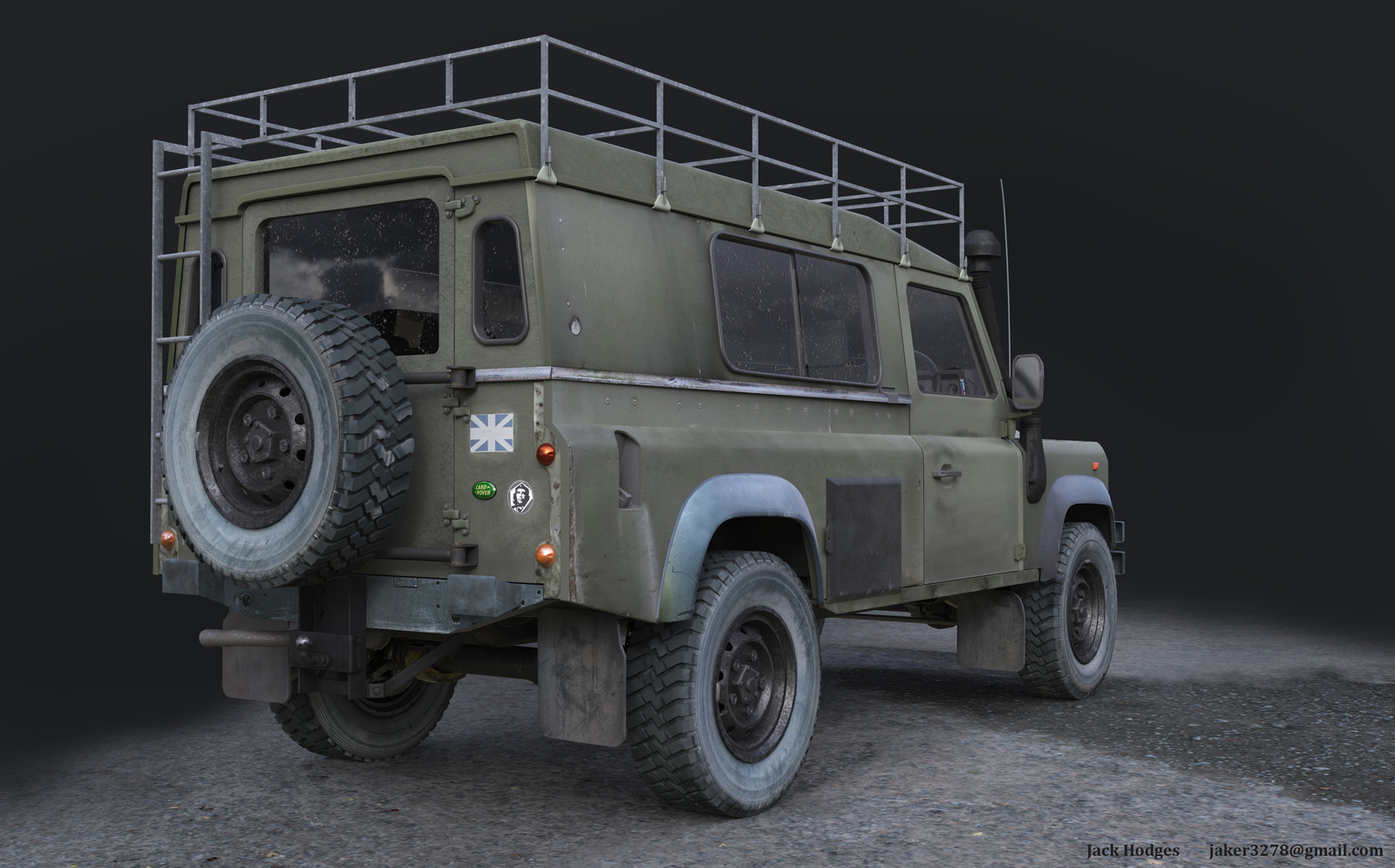

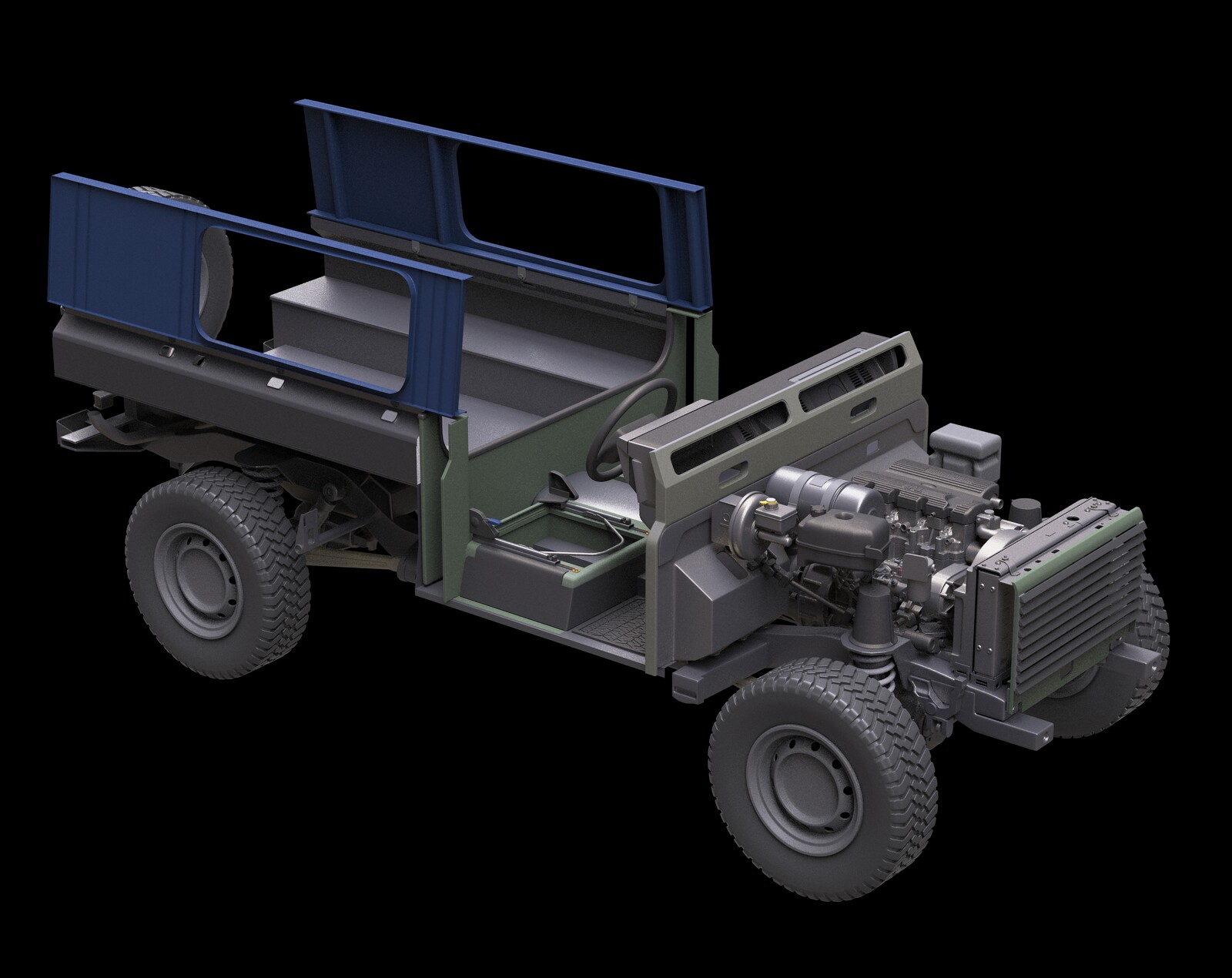

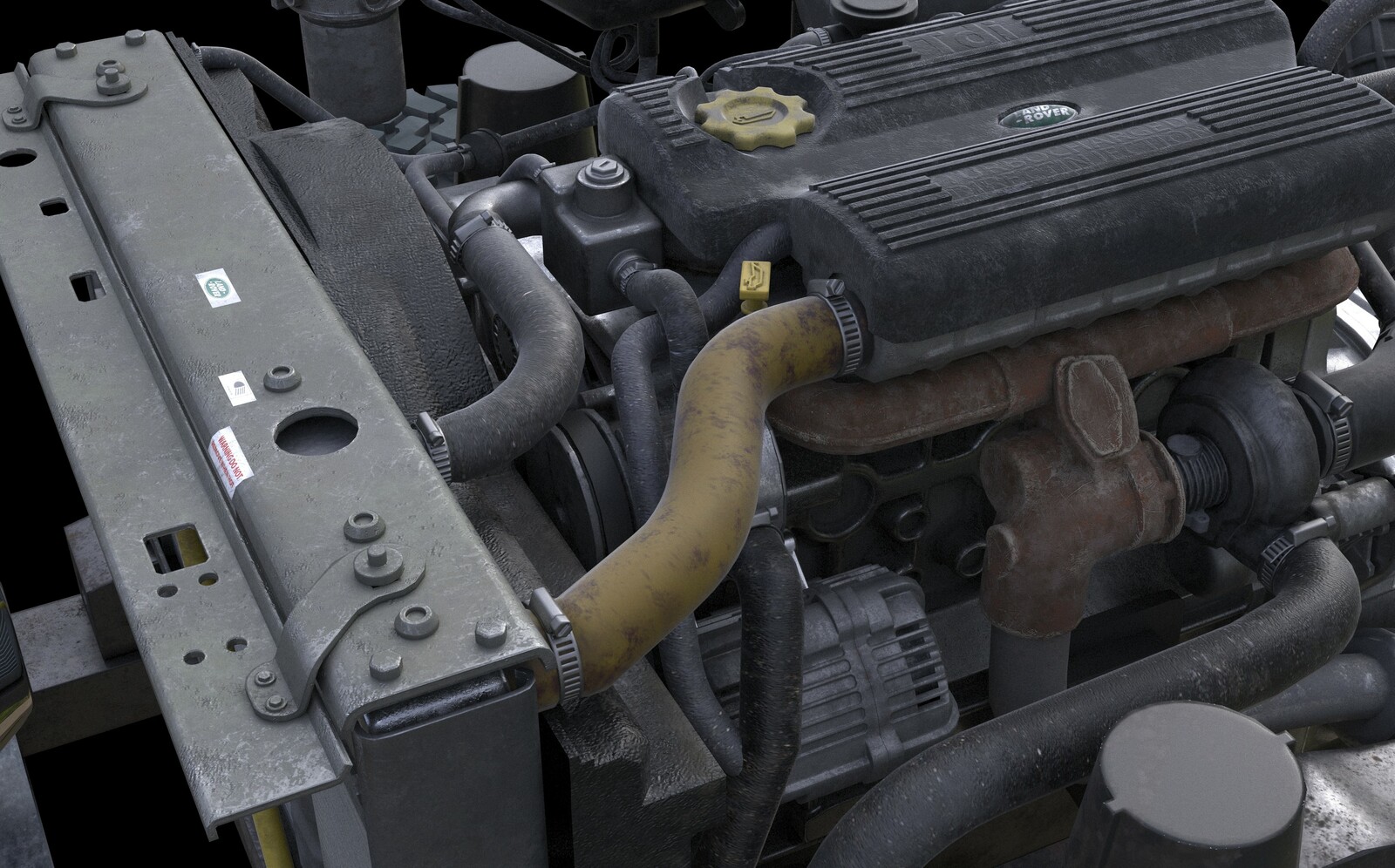

Depicted here is a Land rover defender 300 tdi cut away drawing. As you can see it is shown with exposed parts, the whole project was modeled in 3ds Max and rendered with Vray texturing was done with substance painter and bitmap2material. Each part of the land rover was rendered on different layers so i could then bring the project together in Photoshop and expose parts to the world. In fact i modeled every component i could and many are not visible in these drawings. If you want to see more the next project will be all about the 300 TDI engine.
